Board Layers
|
The quantity of the copper layer in your design
|
1-12layer
|
Board Quantity
|
The quantity of the board you needed
|
≥5pcs
|
Solder Mask Color
|
The color of your board
|
Green/Red/Black/White/Blue/Yellow
|
Silkscreen Color
|
The color of the silkscreen texts on your board
|
White for Green/Red/Black/Blue color board
Black for White/Yellow color board
|

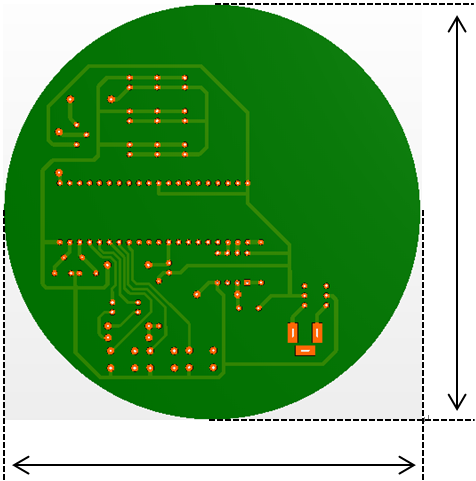

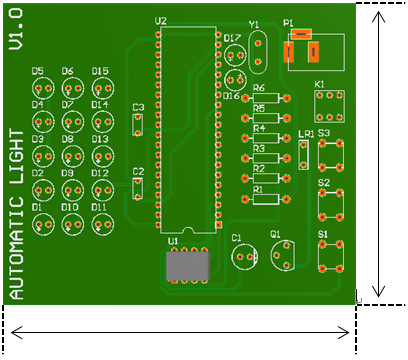

Board Dimension
|
Single pcs
|
|
Max size:540mm*540mm
Min size: 2mm*2mm
Tolerance: ±0.20mm
Ps. If your board dimension is so small, would better make a bigger panel and use slots to separate the board.
|

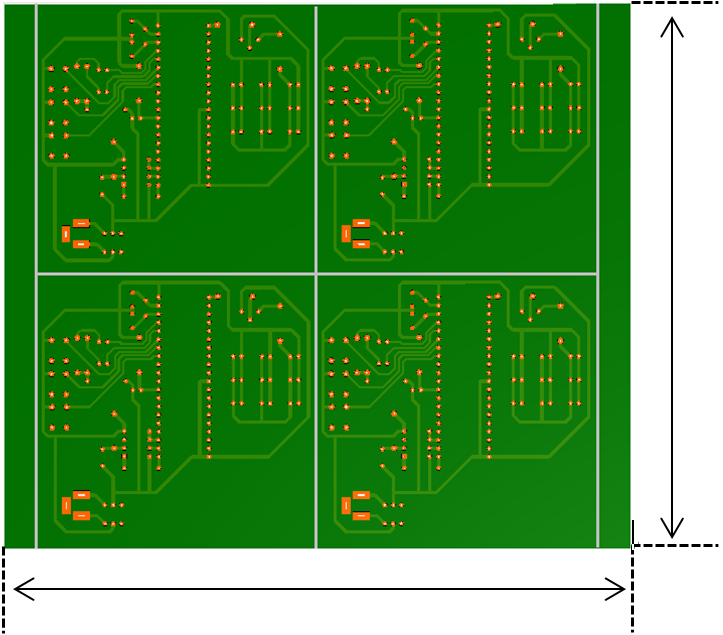

Panel
|
|
|
|
|
|
|

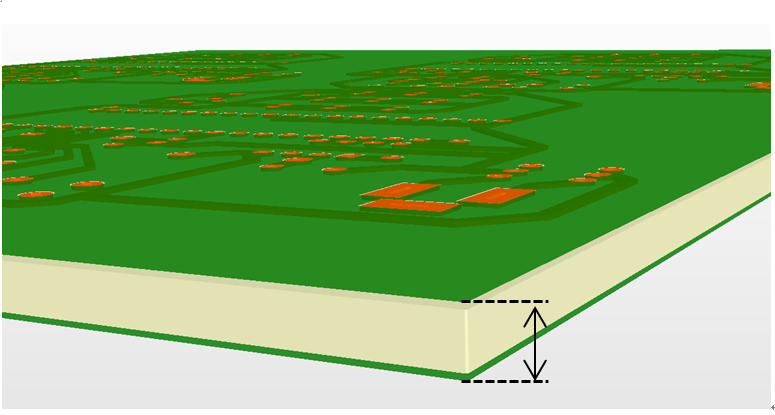

Board Thickness
|
|
1-layer
|
0.6/0.8/1.0/1.2/1.6/2.0/2.4mm
|
2-layer |
0.6/0.8/1.0/1.2/1.6/2.0/2.4mm |
4-layer |
0.8/1.0/1.2/1.6/2.0/2.4mm |
6-layer |
0.8/1.0/1.2/1.6/2.0/2.4mm |
8-layer |
0.8/1.0/1.2/1.6/2.0/2.4mm |
10-layer |
1.0/1.2/1.6/2.0/2.4mm |
12-layer |
1.0/1.2/1.6/2.0/2.4mm |
Tolerance: T≥1.0mm ± 10%mm
T<1.0mm ± 0.1mm |

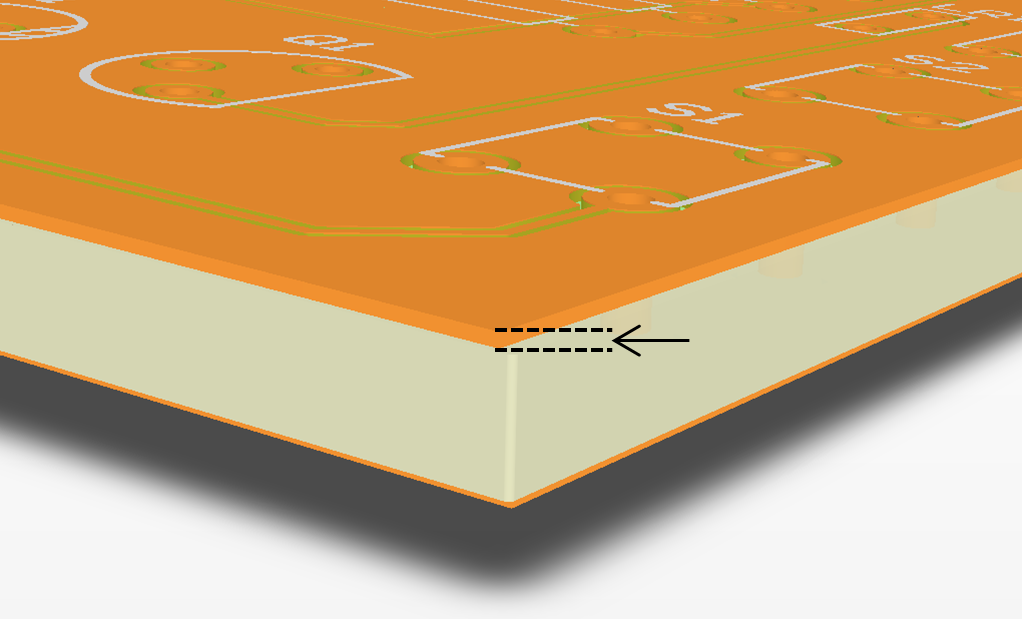

Copper thickness
|
|
Outer layer
|
Hoz-3oz
|
Inner layer
|
Hoz-2oz
|

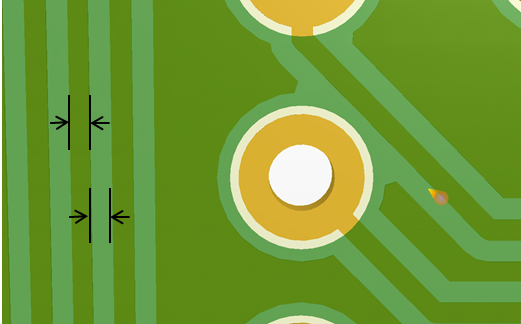

Minimum trace spacing / width
|
|
For normal designs:.
≥4mil(0.1mm)
For coil designs:
≥10mil(0.25mm)
|

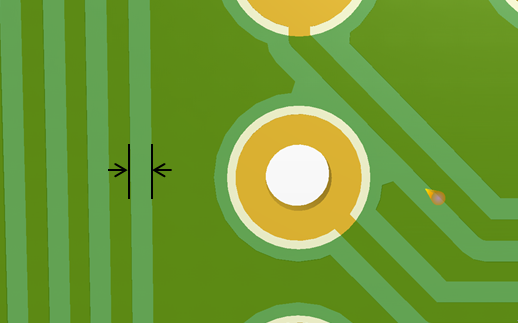

Minimum clearance
between trace and copper pour
|
|
≥8mil(0.2mm)
|

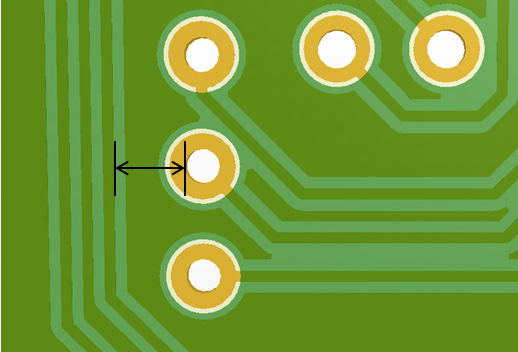

Minimum clearance
between via/plated holes and trace
|
|
≥12mil(0.3mm)
|

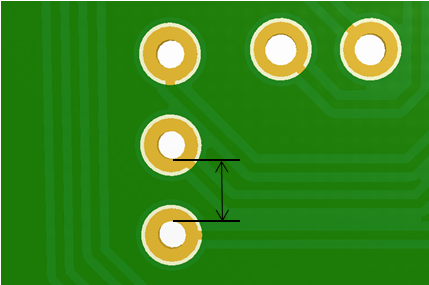

Minimum clearance between vias/plated holes
|
|
≥18mil(0.45mm)
|

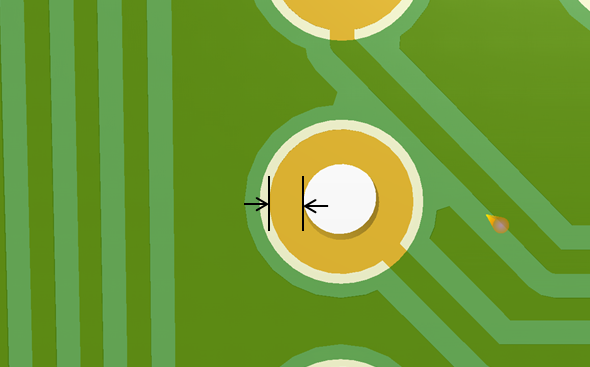

Annular Rings
|
|
≥6mil(0.15mm)
|

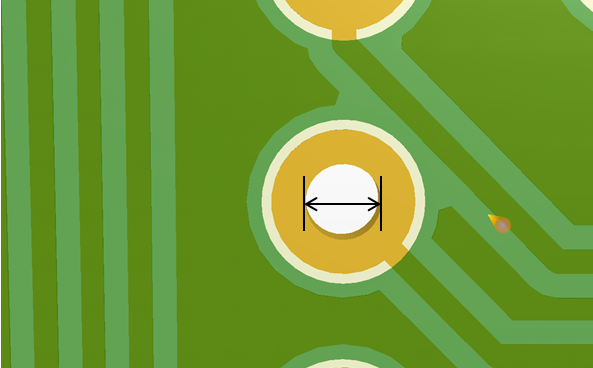

Minimum drill hole size
|
|
≥8mil(0.2mm)
Tolerance: ± 0.05mm
|

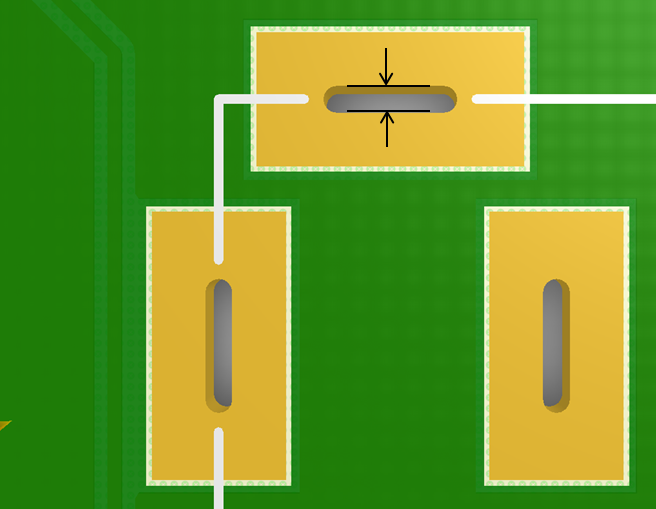

Minimum width of milling/slot
|
|
≥32mil(0.8mm)
Tolerance: ± 0.05mm
|

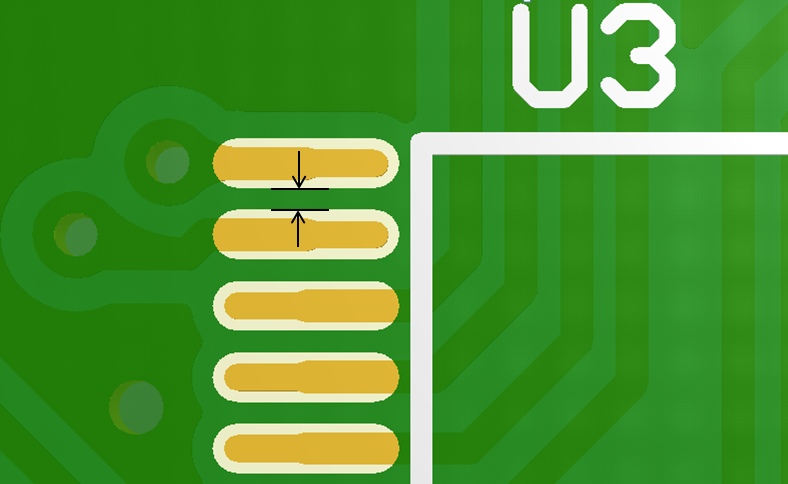

Minimum solder mask dam
|
|
≥6mil(0.15mm)
|

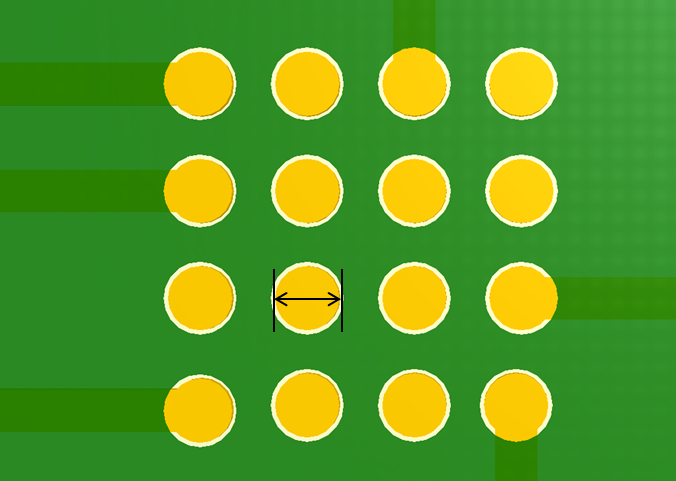

Minimum width of BGA pads
|
|
≥0.25mm
|

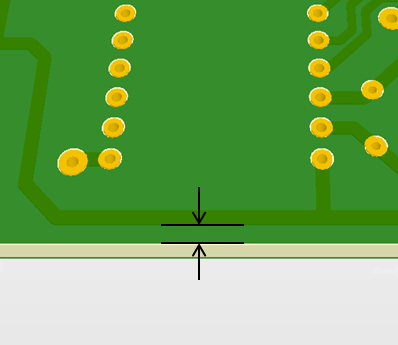

Minimum clearance between traces and board edge
|
|
≥0.3mm
|
Minimum silkscreen text height, text width and trace width
|
|
Text height ≥25mil(0.675mm)
Text width ≥20mil(0.5mm)
Trace width ≥5mil(0.125mm)
Perfect aspect ratio of text width and height: 1/5
|
